Method

Infrared reflection method

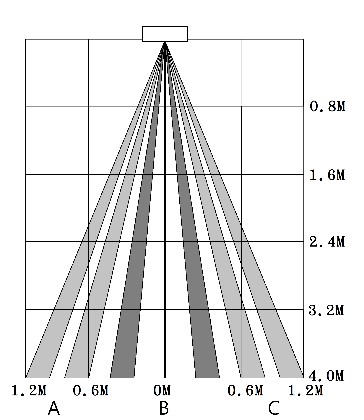

Distance

3. 2m-4m

Size

210x73x33(mm)

Voltage

AC 90V ~ AC 250V

 DC 12V~DC 24V

Power

3VA (max)

Temperature

-20˚C~50˚C

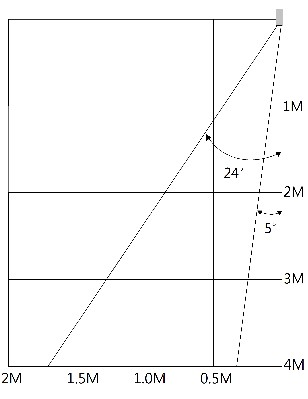

Adjustment range

5˚~24˚ Spiral fine-tuning

Sensitivity adjustment

Strong or weak adjustable

Action indicator

Power on red light; action green light.

Hold time

Adjustable for 1~5 seconds

Maximum output

110V/3A N.O

24V/0.5A

Weight

0.53kg

0.45kg
